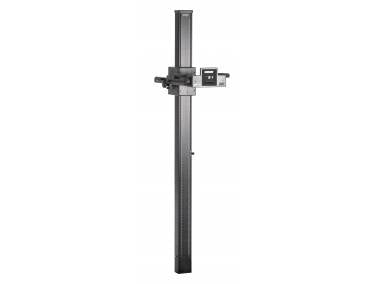

Kaiser 5725 RSP XTRA Autodrive Column

Professional column from the rePRO system. Camera carrier equipped with motorized height adjustment via PC/laptop or cable remote control. Height positions can be stored and retrieved with approx. 1/100 millimeter repeat accuracy. Supplied with "Kaiser autoDrive" control program.

Specifications:
Column height: 216 cm (85 in.)
Cross-section: 12 x 8 cm (4.7 x 3.1 in.)
Height adjustment: motorized (computerized or via cable remote control)
Camera mounting plate: 13 x 13 cm (5.1 x 5.1 in.)
Maximum load: approx. 15 kg (33 lbs.)
Mounting thread: 1/4” / 3/8”, exchangeable

Scope of delivery: Column with camera carrier, control unit, cable remote control, various connection cables, mounting accessories, control program (on USB stick).



Additional information:

Column made of multi-chamber special aluminum section, matt black anodized, with printed cm and inch scales. Mounting with rePRO Wall Mount (5614) on load-bearing walls or in rePRO Base (5610) on suitable substructure.

Camera carrier made of cast aluminum, with motorized height adjustment via "Kaiser autoDrive" control program or cable remote control. Adjustment speed independent of load. Any height position is exactly held via self-limiting worm-gear. Automatic limit stop by magnetic sensor. Camera carrier horizontally adjustable via specially shaped parallel guides with gear rack, hand cranks for right-hand/left-hand operation, two locking screws. Built-in spirit level. Camera mounting plate can be swiveled by ± 90° with high-precision fine adjustment.

Cable remote control for slow and fast travel speed up and down. Four height positions can be stored and recalled accurately with one keystroke. Red emergency stop key.

“Kaiser autoDrive" control program for computer-controlled height adjustment via PC/laptop and for brightness control of the RB 570 AX LED lighting unit (5652). Height positions can either accessed directly or by retrieving one of 500 possible saved “projects” including height position and brightness values.
