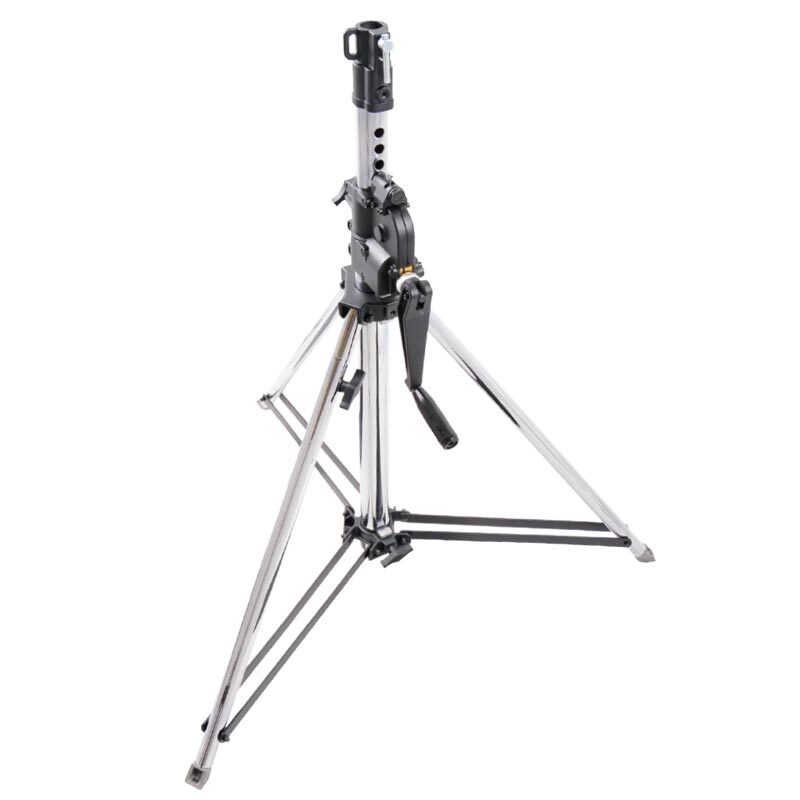

Kupo 482T 2 Section Wind-up Stand with Auto Self-Locking Device

The Kupo 482T wind-up stand enables a single operator to raise and lower heavy lights or scrims safely by turning a handle.

The maximum height of the 482T is 245cm. The riser extends at an elevation rate of 2.2cm per full handle turn. The unique automatic self-locking mechanism is designed to prevent the light stand from dropping unexpectedly, avoiding damage to operator or equipment.

the 482T stand is constructed from chrome plated steel,

Specifications:

1 riser, 2 sections

Maximum load: 45kg

Product weight: 18.1kg

Diameter: 55mm, 45mm

Leg diameter: 30mm

Maximum operating height: 245cm

Minimum operating height: 90cm

1 levelling leg, footprint diameter is 128cm

Auto self-locking device

Chrome plated steel with geared column

Features:

Self-locking mechanism pin engages each notch to prevent unexpected slippage.

The crank handle folds back for travel. It also can be placed in between tripod legs as an additional security measure to prevent the risers from falling accidentally if the lock is unexpectedly disengaged.

The brake shoe tension can be quickly adjusted with an Allen wrench.
